To use a cardboard baler, flatten boxes, load them into the compression chamber, close the safety gate, and press the cycle button. The hydraulic ram compresses the material in 30 to 60 seconds. Repeat until the chamber is full (typically 3 to 10 cycles), then tie the bale with wire through the built-in channels and eject it. One employee, no special training, 15 to 45 minutes per bale.
This guide covers how to operate a baler from initial setup to efficient daily baler operation, including how to tie a bale and essential cardboard baler safety rules. Whether you call it a cardboard baler or a cardboard compactor, the process is the same.
How to Use a Cardboard Baler: Setup and Preparation
If your cardboard baler is newly installed, complete these steps before your first bale. Proper setup ensures the equipment operates at maximum efficiency and produces compact, dense bales from day one. Whether you purchased a budget-friendly entry-level unit or a heavy-duty industrial model, the initial setup process is the same.
- Position the machine. Place the baler on a flat, level surface with at least 3 feet of clearance in front for loading and bale ejection. Leave 12 to 18 inches on each side for ventilation. Ensure the machine is stable and does not rock — use shims under the feet if needed.
- Fill the hydraulic reservoir. Most balers ship without hydraulic oil (it cannot ship by ocean freight). Add AW-46 hydraulic oil to the reservoir until it reaches the sight glass indicator on the hydraulic cylinder housing. A small baler takes approximately 5 to 8 gallons. Cost: about $30 to $50 at any auto parts or farm supply store.
- Connect power. Small balers (Carbon 24-VB and Carbon 24-VBHD) plug into a standard 120V/20-amp outlet — designed for easy installation in any facility without special electrical work. Larger units (Carbon 32-VB and above) require a 208/230V or 480V three-phase connection. Never use an extension cord — plug directly into a wall outlet or hardwired connection.
- Stock baling wire. Purchase 14-gauge galvanized baling wire. You will need 2 to 4 lengths of wire per bale, depending on your machine's wire channel configuration. A 100-lb roll runs approximately $40 to $60 and lasts months for most businesses.
- Run a test cycle. With the chamber empty, close the safety gate and press the cycle button. The ram should descend smoothly, compress to the bottom, and retract. Listen for unusual sounds — grinding, squealing, or excessive vibration indicates a problem. If the test cycle runs smoothly, you are ready to bale.
How to Operate a Cardboard Baler: Step-by-Step
This process applies to vertical cardboard balers, sometimes also called cardboard compactors. These machines are designed to compact cardboard waste into dense, manageable bales — a simple waste management solution that helps facilities of all sizes reduce hauling costs and reclaim valuable floor space. The operation is the same whether you are using a Carbon 24-VB entry-level model or a Carbon 24-VBHD Cardboard Baler for a mid-size business.
New to balers? First read what a cardboard baler is and how it works.
Step 1: Flatten and Prepare the Cardboard
Break down all boxes flat before loading. Remove any non-cardboard materials — plastic tape is fine, but remove heavy staples, wood reinforcements, metal strapping, and packing materials like foam or bubble wrap. Contaminated bales (wet cardboard, food residue, mixed materials) sell for less or may be rejected by recycling centers entirely. Keeping your cardboard stream clean maximizes bale value and ensures recyclers accept your material without issue.
Flatten boxes completely rather than just crushing them. A flat box layers neatly and compresses more evenly, producing denser bales.

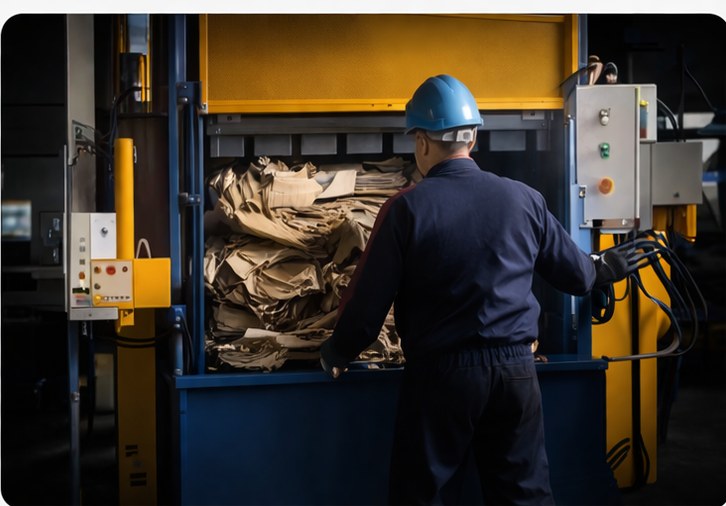

Step 2: Open the Loading Door and Load the Chamber
Swing the front-loading door to its full opening position and stack flattened cardboard into the compression chamber. The wide loading opening on most vertical balers allows users to feed material quickly without pre-cutting oversized boxes. Layer the material as evenly as possible — do not pile everything on one side. Fill to the marked fill line but do not overfill above it. Overpacking prevents the ram from compressing material effectively and puts unnecessary strain on the hydraulic system.
For best results, load a mix of single-wall and double-wall corrugated, alternating direction for a denser, more stable bale.
Step 3: Close the Safety Gate and Compress
Close and secure the safety gate. The baler will not operate with the gate open — safety interlocks prevent the ram from activating until the gate is fully latched. This is a critical safety feature controlled by the Omron safety relay system.
Press the cycle button on the control panel. The hydraulic cylinder drives the ram downward, compressing the cardboard with 5 to 60 tons of force depending on your model. A single compression cycle takes 30 to 60 seconds — the speed depends on the baler's tonnage and the volume of material loaded. You will hear the hydraulic pump engage and see the pressure gauge rise. The ram retracts automatically when it reaches maximum travel or preset pressure.
Step 4: Repeat Until the Chamber Is Full
After the ram retracts, open the door and load another batch of cardboard. Close the gate and run another cycle. Repeat this process 3 to 10 times depending on the baler size and the density of your material. Smaller balers need more cycles to build a complete bale; larger models compress more material per cycle.
Most balers have a bale-full indicator — a line on the chamber wall or an indicator light on the control panel — that tells you when the bale has reached the target density and height for tying.
Step 5: Tie the Bale
When the bale is ready for tying:
- With the ram holding the bale compressed, locate the wire channels — slots running through the chamber walls.
- Thread baling wire through each channel around the bale horizontally.
- Pull tight and twist the ends together (4 to 6 turns minimum) using pliers or a wire twisting tool.
- Tuck twisted ends flat against the bale to prevent snagging during handling.
- Repeat for each channel — most balers have 2 to 4 channels.
Tying takes 2 to 5 minutes with practice. Keep wire taut while twisting — loose ties allow the bale to expand after ejection, reducing density.
Step 6: Eject the Bale
After tying, retract the ram fully. Open the loading door and eject the finished cardboard bale. On most vertical balers, gravity and a slight push are sufficient to slide the bale out. Larger models have a mechanical ejection feature. Ready to see what a baler can do for your operation? Calculate your savings with our ROI tool.
Small bales (33 to 110 lbs bale weight from Carbon 24-VB and Carbon 24-VBHD) can be moved manually by hand or with a hand truck. Larger bales (200+ lbs) require a pallet jack or forklift for safe handling. Stack bales on pallets in a dry storage area away from moisture until you have enough for a recycler pickup — most recycling centers will schedule free pickups once you have 5 to 10 bales ready.
Safety Guidelines for Cardboard Baler Operation
Cardboard balers are powerful hydraulic machines engineered with multiple safety systems. Modern equipment includes safety interlocks, emergency stops, and pressure relief valves designed to protect users during operation. However, operators must still follow basic safety practices:
Required Safety Practices
- Never defeat safety interlocks. The gate interlock prevents the ram from operating while the door is open. Never bypass or prop open the gate.
- Keep hands clear of the chamber. If material is stuck, use a wooden push stick — never your hands.
- Wear safety glasses and cut-resistant gloves. Baling wire under tension can snap. Always wear eye protection and gloves during tying.
- Know the emergency stop location. Every baler has a red e-stop button. Pressing it immediately halts all hydraulic movement.
- Do not allow minors to operate the baler. OSHA prohibits anyone under 18 from operating a baler or compactor (29 CFR 1910.265).
- Keep the area clear. No loose materials, trip hazards, or obstructions in loading and ejection zones.
OSHA Basics for Baler Operators
OSHA does not require a specific baler operator certification, but general industry safety standards apply (see 29 CFR 1910.265 for details). Employers must provide training on the specific baler being used, including: the location and function of all controls, safety interlock operation, proper loading procedures, emergency stop procedures, and lockout/tagout procedures for maintenance. Document this training in your employee files to support your sustainability and compliance goals.
Tips for Efficient Baling
These practices save time and produce better bales, helping your facility get maximum value from its cardboard baler investment:
- Bale throughout the day, not all at once. Load and cycle the baler as cardboard accumulates rather than letting it pile up for an end-of-day baling session. This spreads the work across shifts and keeps your loading dock clear.
- Flatten boxes immediately. Train receiving staff to flatten boxes as they unpack shipments. Pre-flattened boxes load faster and compress more evenly.
- Separate material types. If you generate both cardboard and plastic film, bale them separately. Mixed bales sell for less than sorted single-material bales. OCC (old corrugated containers) commands the highest price when clean and sorted. Many retail shops, restaurants, and distribution centers generate enough volume to justify separate cardboard and plastic streams.
- Keep cardboard dry. Wet cardboard is heavier, harder to compress, and rejected by most recyclers. Store unbaled paper and cardboard in a covered area and keep the loading door closed when the baler is not in use.
- Track your bale count. Keep a simple log of bales produced per week or month. This data helps you negotiate with recyclers, plan pickup schedules, and identify volume trends. Use our ROI calculator to see how your bale production translates to savings.
Not sure which baler is best for your volume? Our sizing guide matches your daily cardboard output to the right tonnage. And if you are comparing options, see our picks for the best small business cardboard balers in 2026. You can also learn about cardboard baler cost to understand the full range of pricing for sale across different tonnage levels.
Vertical Baler vs. Horizontal Baler: Does Operation Differ?
This guide focuses on vertical balers — the most economical and budget-friendly option for small to mid-size businesses. With low upfront costs starting around $6,995, vertical balers are designed for facilities with moderate cardboard volume. Horizontal balers are larger, more expensive machines designed for high-volume facilities that process over 10,000 lbs of cardboard and paper per day. In a horizontal baler, material is fed continuously and bales eject automatically — no manual tying required.
For most businesses — including retail stores, restaurants, grocery stores, and small warehouses — a vertical cardboard baler offers the ideal balance of low cost, compact footprint, and ease of use. Even on a tight budget, these economical machines pay for themselves quickly. Our customers report that baler operation takes less than 30 minutes per week.
Common Mistakes to Avoid
- Overfilling the chamber. Packing above the fill line jams the ram and can damage the hydraulic system.
- Not flattening boxes. Unflattened boxes waste space and create uneven, loose bales.
- Using the wrong wire gauge. Use 14-gauge galvanized baling wire. Lighter gauges snap; heavier gauges are difficult to thread and tie.
- Ignoring hydraulic fluid levels. Check monthly. Low fluid causes pump cavitation and reduces compression force.
- Baling contaminated material. Food-soiled or wet cardboard contaminates the entire bale. Keep your cardboard recycling stream clean.
Basic Maintenance Schedule
| Task | Frequency | Time Required |
|---|---|---|
| Check hydraulic fluid level | Monthly | 1 minute |
| Inspect door hinges and latches | Monthly | 2 minutes |
| Clean debris from chamber and wire channels | Weekly | 5 minutes |
| Test safety interlocks | Monthly | 2 minutes |
| Lubricate door hinges | Quarterly | 5 minutes |
| Inspect hydraulic hoses for leaks or wear | Quarterly | 5 minutes |
| Change hydraulic fluid and filter | Annually | 30 minutes |
| Full hydraulic system inspection | Annually | 1 hour (or hire a tech) |
Following this schedule keeps your cardboard baler running at peak performance for 15 to 25 years. Annual maintenance costs total approximately $300 to $600 — far less than a single month of the waste hauling fees the baler eliminates. That low ongoing cost is one reason a cardboard compactor delivers such strong ROI compared to other waste management solutions.
Frequently Asked Questions
How long does it take to train someone to use a baler?
Most employees learn to operate a vertical baler in 10 to 15 minutes. The process is simple: load, close the gate, press the button, repeat, tie, eject. The most skill-intensive part is tying the bale with wire, which takes a few attempts to master. Have new operators practice the tying process 2 to 3 times under supervision before working independently.
What type of wire do I need for baling?
Use 14-gauge galvanized steel baling wire. It is available at farm supply stores, industrial suppliers, and online. A 100-lb roll costs $40 to $60 and typically lasts several months for a small business operation. Cut wire to the length specified in your baler's manual — usually 5 to 8 feet per tie depending on bale size.
Can I bale wet cardboard?
You should not. Wet cardboard is heavier, molds quickly, and most recyclers reject wet bales or pay reduced prices. Let wet cardboard dry completely before baling. If your receiving area is exposed to weather, consider a covered staging area to protect unbaled material.
How do I know when the bale is ready to tie?
Your baler has a bale-full indicator — either a mark on the chamber wall showing the target compression height, or an indicator light on the control panel. When the compressed material no longer drops below this mark after a cycle, the bale is at target density and ready to tie. If you tie too early, the bale will be loose and light. If you continue past the indicator, you waste energy without meaningfully increasing density.
What should I do if the baler will not cycle?
Check these items in order: Is the safety gate fully closed and latched? Is the emergency stop button disengaged (pull or twist to release)? Is the hydraulic fluid at the proper level? Is the power supply connected and the breaker on? If all checks pass and the baler still will not cycle, contact the manufacturer for troubleshooting support. Never attempt to bypass safety interlocks to force operation.
Start Baling Today
Using a cardboard baler is one of the simplest equipment operations in any business. Load, compress, tie, eject — and stop paying $200 to $800 per month in waste hauling fees. Most businesses see the baler pay for itself within 12 to 18 months through reduced hauling costs alone, with any cardboard bale sale revenue as a bonus on top.
The Carbon Compactors Carbon 24-VBHD Cardboard Baler is our most popular model for businesses getting started — a budget-friendly, economical choice with low ongoing costs, strong compression power, and free shipping at $7,995. Browse our full lineup of vertical cardboard balers with transparent pricing, or use our ROI calculator to see exactly how much your business could save.
Not sure which cardboard baler fits your operation? Read our complete buying guide or use the sizing guide for a quick recommendation based on your daily cardboard volume.
