A vertical baler costs $6,995 to $17,995 and presses material from the top down. A horizontal baler costs $50,000 to $500,000+ and pushes material sideways with a conveyor feed. If your business makes less than 10 tons of cardboard waste per day, a vertical baler does the same job at a fraction of the cost. That covers restaurants, retail stores, hotels, hospitals, supermarkets, malls, and most warehouses.
What Is a Vertical Baler?
A vertical baler is a waste recycling machine that uses a downstroke hydraulic ram to press cardboard, paper, plastic, and other materials into dense bales. It is the most common type of cardboard baler for small and mid-size businesses.

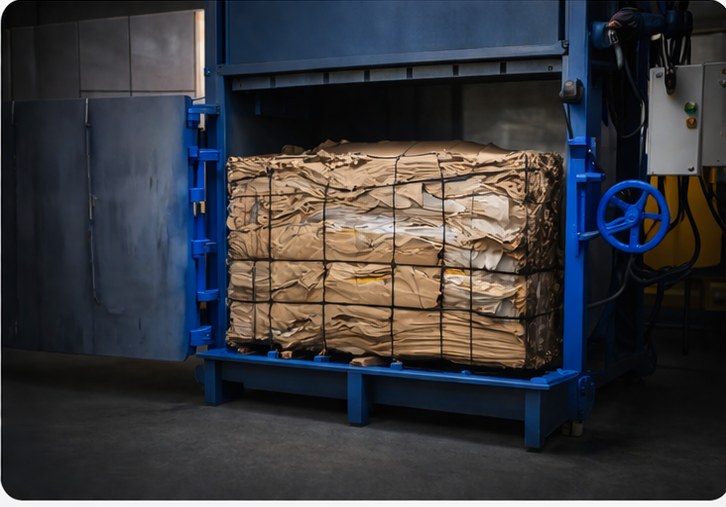

The operator loads OCC (old corrugated containers) and other materials through a front door opening, closes the safety gate, and hits the start button on the control panel. After several cycles fill the chamber, the operator ties the bale with wire and ejects it.
Vertical balers are the standard choice for small and mid-size businesses across a wide range of applications. Retail chains, restaurants, hotels, hospitals, and supermarkets all use them daily. They range from compact Carbon 24-VB units that plug into a standard 120V electrical outlet to heavy-duty industrial Carbon 72-VB machines built for distribution centers. The ideal height is 6 to 8 feet, so they fit in low-ceiling spaces. Prices range from $6,995 to $17,995 based on tonnage and chamber size.
The term "cardboard compactor" is sometimes used to mean "cardboard baler," though they are different types of balers and equipment. For a detailed breakdown, see our baler vs. compactor comparison. This vertical vs horizontal baler guide focuses on the two main baler categories and which one fits your operation.
What Is a Horizontal Baler?
A horizontal baler pushes material from side to side using a ram powered by a side-mounted power unit. These machines are much larger — often 20 to 40 feet long. They use conveyors or hopper feeds to move material in. Many models are designed to tie and eject cardboard bales on their own with no operator help. The heavy-duty steel construction and quality engineering let them safely handle high volumes of cardboard, plastic, metal, and non-ferrous materials.
Horizontal balers serve the high-volume end of the waste management market. MRFs (material recovery facilities), large recycling centers, and industrial plants that process 10 to 100+ tons per day need them because manual loading cannot keep up. Equipment costs start around $50,000 for a basic model. Fully automatic systems with conveyors can top $500,000 — an important line item in any waste disposal budget.
Vertical Baler vs. Horizontal Baler: Side-by-Side Comparison
| Feature | Vertical Baler | Horizontal Baler |
|---|---|---|
| Equipment cost | $6,995 – $17,995 | $50,000 – $500,000+ |
| Footprint | 15 – 50 sq ft | 200 – 800+ sq ft |
| Throughput | 500 – 10,000 lbs/day | 10,000 – 200,000+ lbs/day |
| Bale weight | 33 – 1,543 lbs | 800 – 2,500+ lbs |
| Loading method | Manual (operator loads by hand) | Conveyor, hopper, or manual feed |
| Bale tying | Manual (operator ties with wire) | Manual or automatic |
| Power requirements | 120V (small models) or 208/230V or 480V 3-phase | 208/230V or 480V 3-phase |
| Operators required | 1 person, part-time | 1-2 dedicated operators |
| Installation complexity | Minimal — place, plug in, add oil | Professional installation required; often needs concrete pad, electrical work |
| Maintenance cost | $300 – $600/year | $2,000 – $10,000+/year |
| Best for | Restaurants, retail, grocery, warehouses, small/mid distribution centers | MRFs, recycling centers, large manufacturing, high-volume industrial |
| Payback period | 6 – 18 months | 2 – 5 years |
When a Vertical Baler Is the Right Choice
In our experience working with businesses across the country, a vertical baler (also called a cardboard compactor by some buyers) wins for the vast majority of operations. Most facilities make between 200 and 5,000 lbs of cardboard waste per day. A reliable, efficient vertical baler handles that volume with ease. Why spend $50,000+ on a horizontal baler when a $12,000 to $20,000 vertical cardboard compactor does the same job? You can quickly reduce waste hauling costs by up to 80% and save $200 to $800 per month.
Specific scenarios where vertical is the clear winner:
- Your daily cardboard volume is under 10,000 lbs. This covers virtually all restaurants, retail stores, grocery stores, warehouses, and most distribution centers.
- Floor space is limited. A vertical baler fits in a back hallway, loading dock corner, or closet. A horizontal baler requires a dedicated room or outdoor bay.
- Budget is under $25,000. Vertical balers cost 3x to 25x less than horizontal models of equivalent compression force.
- You need 120V operation. Small vertical balers plug into a standard outlet. No horizontal baler runs on 120V.
- You do not have a dedicated baler operator. Vertical balers are part-time machines — any employee can load and cycle the baler as cardboard accumulates throughout the day.
- Installation needs to be simple. Vertical balers ship ready to use: place on a flat surface, add hydraulic oil, connect power. No concrete pad, no rigging, no professional installation crew.
For an in-depth look at which vertical baler size matches your volume, see our baler sizing guide. You can also learn about how to use a cardboard baler to see how simple daily operation is. The right equipment saves both time and money on waste management.
When a Horizontal Baler Is the Right Choice
Horizontal balers make sense for a narrow set of high-volume operations:
- You process more than 10 tons of material per day. At this volume, manual loading into a vertical baler becomes the bottleneck. Conveyor-fed horizontal balers run continuously with minimal operator involvement.
- You operate a material recovery facility (MRF). MRFs process mixed recyclables from municipal collection programs and need automated sorting and baling systems. Horizontal balers integrate with sorting lines.
- You need fully automated operation. Auto-tie horizontal balers compress, wire-tie, and eject bales without operator intervention. This is essential for 24/7 operations.
- Bale density requirements are extremely high. Some commodity buyers require bale densities that only high-tonnage horizontal balers can achieve, particularly for certain grades of plastic and mixed paper.
If any of these describe your operation, a horizontal baler may be worth the investment. But first, consider that a Carbon 72-VB makes bales up to 1,550 lbs and handles serious industrial volume at a fraction of the cost. Many warehouses and manufacturing plants that thought they needed a horizontal baler run just fine with a large vertical model. Calculate your savings to see the numbers for your specific volume.
Why Carbon Compactors Sells Vertical Balers
We focus on vertical cardboard balers because they serve 90% or more of the businesses that need baling equipment. The math depends on your volume, but it is clear for most: a restaurant, retail chain, hotel, supermarket, mall, or mid-size distribution center does not need a $100,000 machine. They need a reliable, quality-built vertical baler designed to handle their daily cardboard bales, fit in limited space, and save enough on waste hauling to pay for itself within a year.
Our lineup spans Carbon 24-VB to Carbon 72-VB models — manufacturing-grade cardboard balers designed for quality and long service life. Each unit ships with free transport nationwide, transparent pricing (no "call for quote" games), and a 5-year warranty. This equipment is built to compact cardboard bales day after day for 15 to 25 years. Browse the complete lineup or read our buying guide to find the right fit.
Important note: Vertical cardboard balers are designed for dry recyclables only. They do not handle liquid waste, refuse containing food, or wet containers. If you generate mixed waste streams, you may need both a baler for dry cardboard and a separate compactor for general refuse.
Frequently Asked Questions
Can a vertical baler handle the same materials as a horizontal baler?
Yes. Both types process the same materials — cardboard, paper, plastic film, shrink wrap, bottles, cans, and textiles. The difference is throughput speed, not material type. A vertical baler handles any material a horizontal baler can. It just runs at a lower volume rate because material is loaded by hand rather than by conveyor. Both types must meet OSHA safety standards for baler operation.
What is the maximum bale size from a vertical baler?
The largest vertical balers produce bales weighing over 1,500 lbs. Our Carbon 72-VB model produces bales up to 1,550 lbs with a bale size of approximately 71 inches by 39 inches. This is comparable to the smaller end of horizontal baler output. For most recycler pickups, vertical baler bales meet or exceed minimum weight requirements.
Is a horizontal baler more cost-effective for high volume?
At volumes above 10 tons per day, yes — a horizontal baler's automation reduces labor costs enough to justify the higher equipment price. Below that threshold, the capital cost, installation expense, space requirements, and maintenance costs of a horizontal baler make it significantly less cost-effective than a vertical model. Use our ROI calculator to compare total cost of ownership for your specific volume.
How much faster is a horizontal baler than a vertical baler?
A horizontal baler with conveyor feed can process 5 to 20 tons per hour. A large vertical baler processes approximately 1 to 2 tons per hour with continuous manual loading. The speed advantage of horizontal balers becomes meaningful only at industrial volumes where continuous feed is necessary. For businesses producing a few hundred to a few thousand pounds per day, the speed difference is irrelevant — the vertical baler keeps up without difficulty.
Can I upgrade from a vertical baler to a horizontal baler later?
Yes. Many businesses start with a vertical baler and upgrade later if volume grows enough to justify it. Vertical balers last 15 to 25 years and hold their resale value well, so you can recover much of your original cost when selling. This makes the vertical-first approach the lowest-risk way to get started.
The Bottom Line
For most businesses, the vertical option is the right choice. It costs less, takes up less space, installs in minutes, and handles everything from a restaurant's daily boxes to a distribution center's high-volume cardboard stream. The sustainability benefits are the same with either type — both help you reduce waste, lower disposal costs, and support your environmental management goals.
We have seen businesses save $3,000 to $10,000 per year in waste hauling after switching from dumpster pickups to on-site baling with a vertical unit. When it is time for maintenance, simply disconnect the electrical power and follow the manufacturer's lockout/tagout procedure — a simple process covered by a single indicator light on the control panel.
See our complete cost breakdown for vertical balers, or browse our full lineup with transparent pricing on every model.
